Sinexcel DC charger
SEC 640
640 kW in one cabinet, 1400 A across two liquid-cooled cables. Add a dispenser and it serves four vehicles.
Trucks, buses
and highway stations.
The SEC 640 draws up to 1160 A on the input side and puts out 640 kW, switching in 160 kW steps, which is what heavy vehicles on a schedule need. At 990 × 990 mm on the ground, it still fits a forecourt rather than a compound.
1400 A across two cables
Two connectors boosting to 700 A each on liquid cooling, or 500 A each on natural cooling. Constant power output holds from 300 to 1000 V.
Four vehicles from one cabinet
Two connectors on the charger itself, and an external dispenser takes it to four. The cabinet keeps the power electronics; the dispenser only carries the cables.
MID compliant, barrier-free
Metering to MID for selling energy, autocharge and card payment at the cabinet, and a barrier-free layout so the screen and connectors stay reachable.

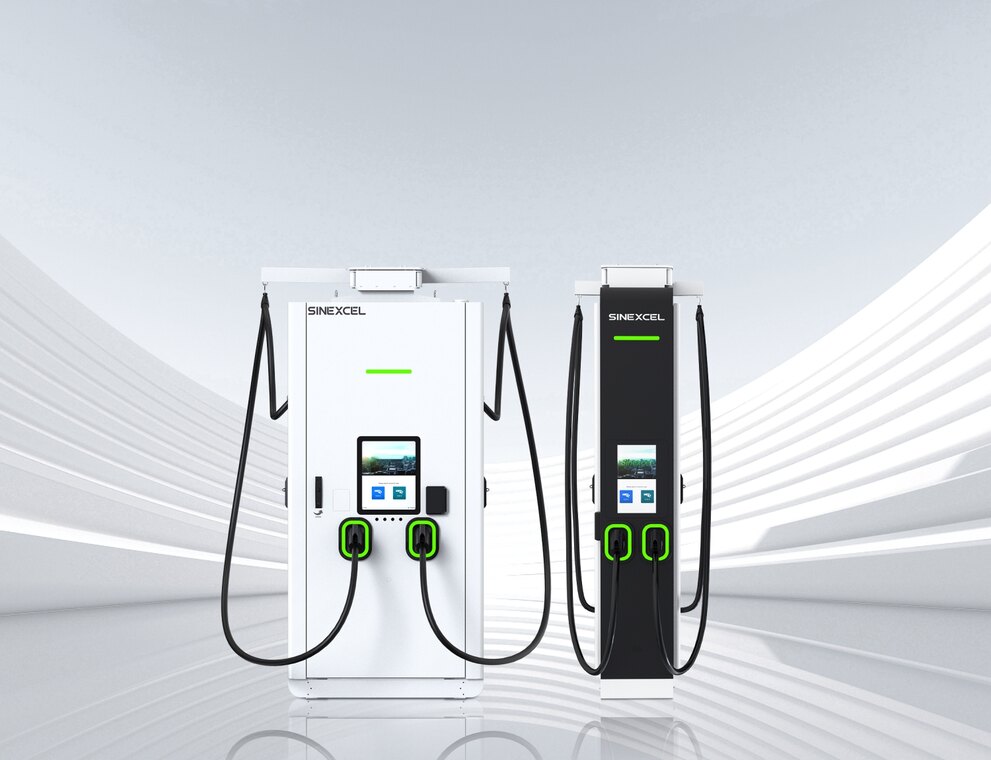

The 640 kW cabinet on the left, an external dispenser on the right.
Specification
640 kW
Rated DC output
700 A
Boost, liquid cooled
Up to 4
Connectors with a dispenser
160 kW
Power switching step
Grid input
Charging output
Cabinet
Environment
Communication and payment
Compliance
Standards and compliance
Certified for the European market, with MID metering for selling energy and OCPP to the back office you choose.
