Sinexcel DC charger
SEC 400
120 to 400 kW from a cabinet 620 mm wide, holding full power from −30 to +65 °C.
High power, narrow cabinet,
no summer derating.
The SEC 400 is the point in the range where the cabinet stops growing sideways. It is 620 mm wide against the SEC 240's 850 mm, yet carries up to 400 kW, and Sinexcel rates it for full output across its whole temperature range rather than derating once the day warms up.
Full power from −30 to +65 °C
No derating band in the specification, which is the difference between a rated figure and a figure you actually get in July or in February.
500 A air, 600 A liquid
Two cooling options on the same cabinet, across 200–1000 V and up to two CCS2 connectors. Peak efficiency 97%.
Under 65 dB
Quiet for its output, and under 600 kg on a 620 × 800 mm footprint, so the foundation and the crane hire stay modest.

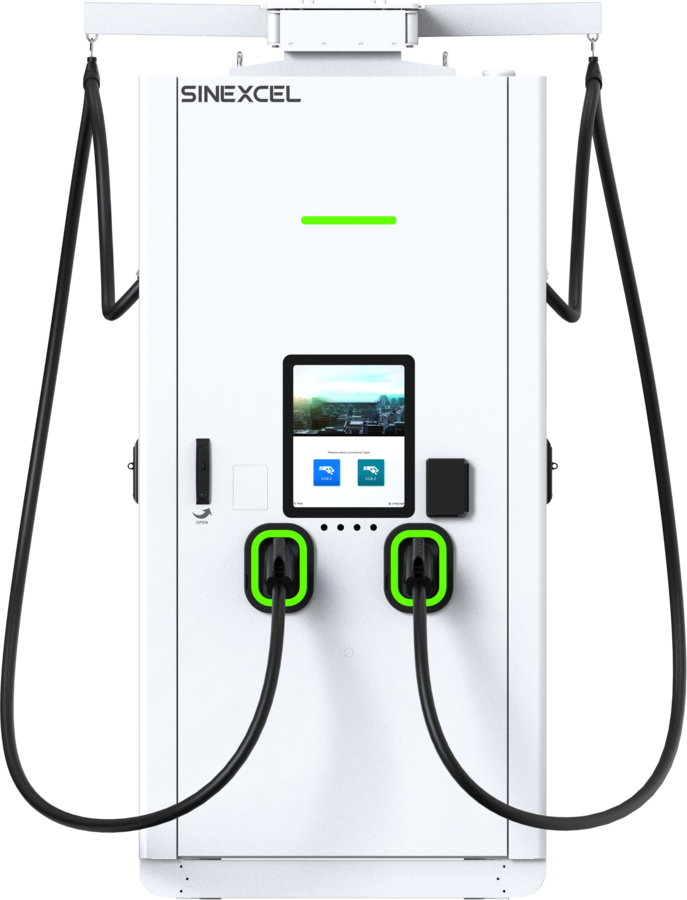

Floor-mounted cabinet with two CCS2 connectors.
Specification
120–400 kW
Rated DC output
600 A
Liquid cooled, 500 A air cooled
97%
Peak efficiency
<65 dB
Noise in operation
Grid input
Charging output
Cabinet
Environment
Communication and payment
Compliance
Standards and compliance
Certified for the European market and open over OCPP, so the charger reports to the back office you choose.
