Sinexcel DC charger
SEC 40
A 40 kW wall-mounted charger for places where cars stand for an hour or more. One CCS2 cable, 125 A, and a cabinet 200 mm deep.
Destination charging
without a floor cabinet.
The SEC 40 is the smallest DC charger in the Sinexcel range. Sinexcel builds it for residential complexes and commercial parking, where a vehicle is parked long enough that 40 kW fills it and the space for hardware is tight.
Goes on a wall
550 × 700 mm and 200 mm deep, under 70 kg. There is also a mobile version on a frame, 1035 mm tall, for sites where the charger has to follow the vehicles.
200 to 1000 V over CCS2
The same output window as the rest of the range, so the charger covers 400 V and 800 V cars alike. 125 A on a 5 m cable.
Rated for outdoor sites
IP55 and IK10, working from −25 to 65 °C, air cooled. Standby draw stays under 20 W between sessions.

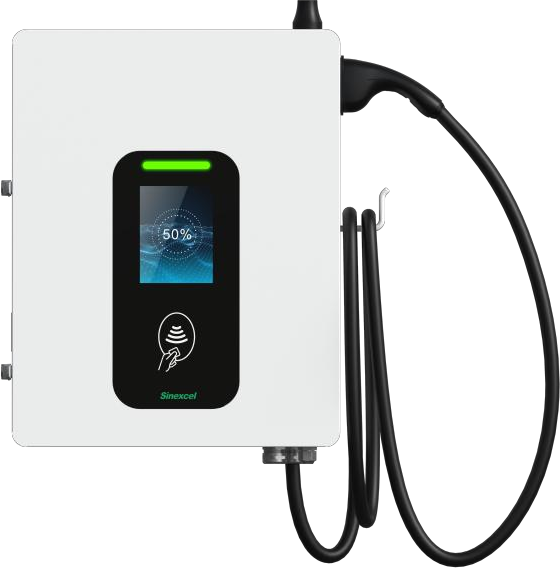

Wall-mounted version, 200 mm deep.

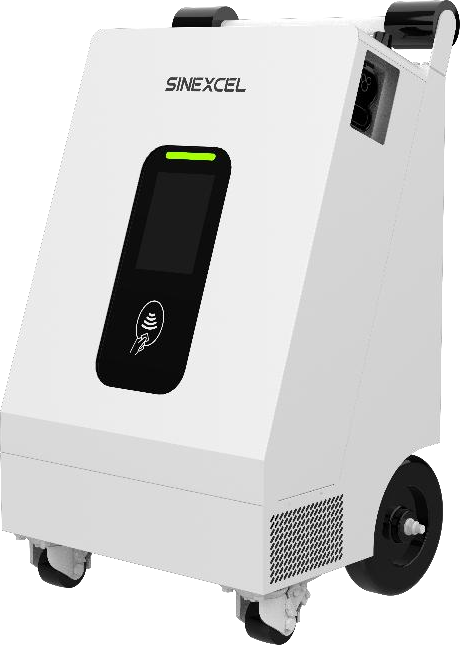

Mobile version on a wheeled frame.
Specification
40 kW
Rated DC output
125 A
Max output current
1 × CCS2
200–1000 V, 5 m cable
≤70 kg
Wall-mounted cabinet
Grid input
Charging output
Cabinet
Environment
Communication and payment
Compliance
Standards and compliance
Certified for the European market and open over OCPP, so the charger reports to the back office you choose.
