Sinexcel DC charger
SEC 160
80, 120 or 160 kW from one cabinet, stacked up from 20 kW power modules, with power shared between the two connectors.
Three power ratings,
one foundation.
The SEC 160 is built around Sinexcel's 20 kW charging modules, which is how one cabinet covers 80, 120 and 160 kW on the same footprint. It handles passenger cars and logistics vehicles, and the dual-connector version distributes its power between the two connectors as demand moves.
80, 120 or 160 kW
The rating comes from how many 20 kW modules the cabinet carries, so all three share a footprint and a foundation. Add modules later rather than pouring a new slab.
Power follows the cars
On the dual-connector version the cabinet distributes its output between the two connectors, so one vehicle can draw the full rating when the other bay is empty.
One or two cables, 61 W idle
Up to 200 A over 200–1000 V, forced-air cooled, drawing 61 W between sessions. Cars and logistics vehicles on the same hardware.

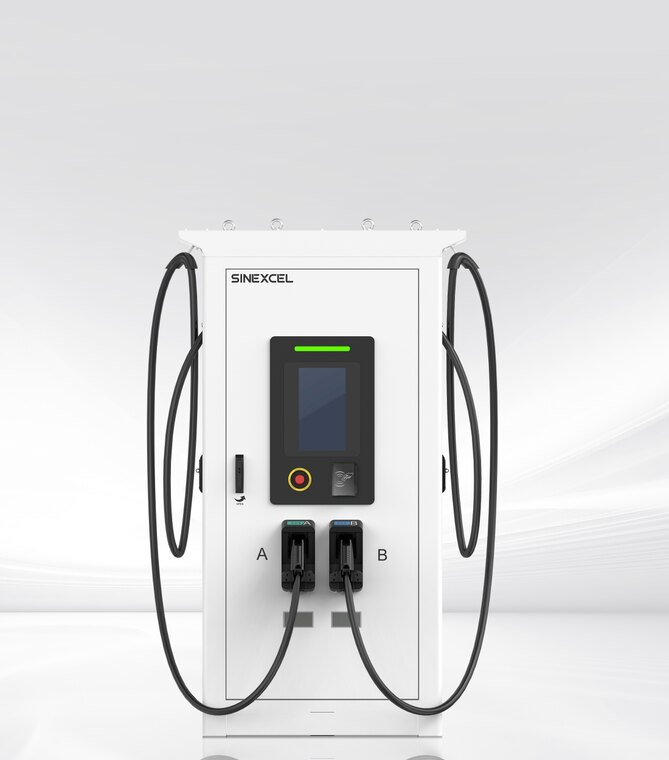

Dual-connector cabinet, connectors marked A and B.
Specification
80–160 kW
Rated DC output
200 A
Max output current
1–2 × CCS2
200–1000 V, 5 m cables
61 W
Standby consumption
Grid input
Charging output
Cabinet
Environment
Communication and payment
Compliance
Standards and compliance
Certified for the European market and open over OCPP, so the charger reports to the back office you choose.
